Schwab UP 188

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

13 listed components
Explore flush plate designs & finishes →

Pinch or scroll to zoom · Drag to pan

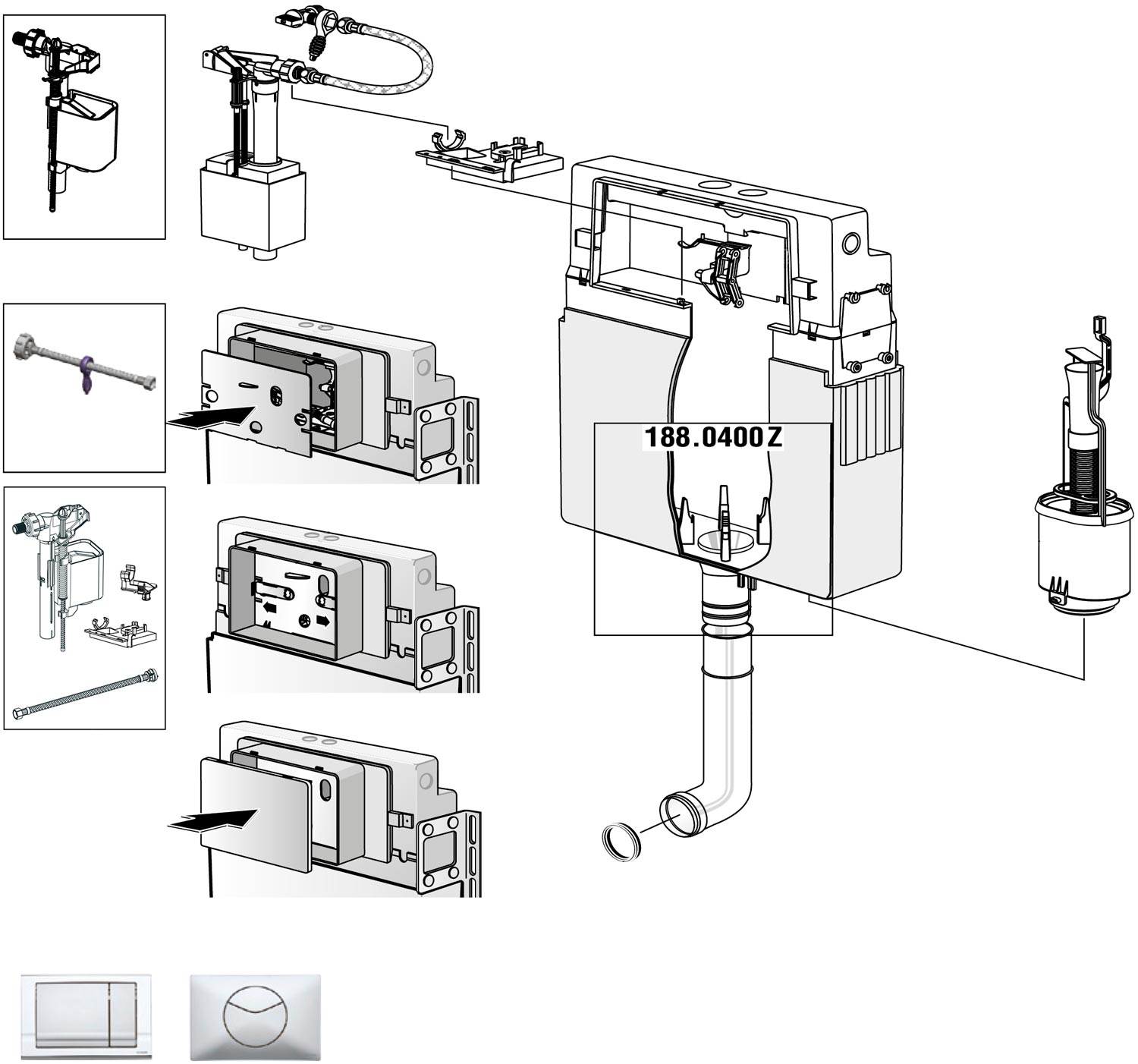

Schwab UP 188 manufacturer exploded parts diagram

Drawing positions

Schwab UP 188 / flush plates

Choose the design. Then the finish.

Match the plate mechanism and installation generation before ordering. Historical references do not establish current availability.

POINT DUO, gloss chrome, 227753

2. Finish

227753
  • gloss chrome
  • dual flush
  • mechanical

POINT DUO · gloss chrome

Operation
dual flush
Mechanism
mechanical
EAN
3838912034700
Generation & required hardware

188.0400 since 2008; dual flush or start-stop. Fill-valve revision 02/2014 is not a plate change.

Existing I2 bridge 239889 and I5 bearing bracket 231613 with setting lever; mounting/operating parts must match exact plate variant. Additional kit not specified.

Exact plate mechanism must match; no manufacturer plate revision/cutover date found.

Enquire about this plate ↗
Manufacturer compatibility reference ↗

Schwab UP 188 / replacement articles

Every part, in view.

13 of 13 components

1
Flush valve with gasket, cisterns 182, 188
228578
2
Set holder and release lever
231613
3
Flush pipe elbow 300 x 70 mm, white
382059
4
Holder, cistern 180, 182, 188
239889
5
Flange gasket for flush valve
351517
6
Gasket for flush pipe
352277
7
Flushing pipe elbow with att., L=300 mm
359793
8
Connecting tube without stop valve (up to 02/2014)
359807
9

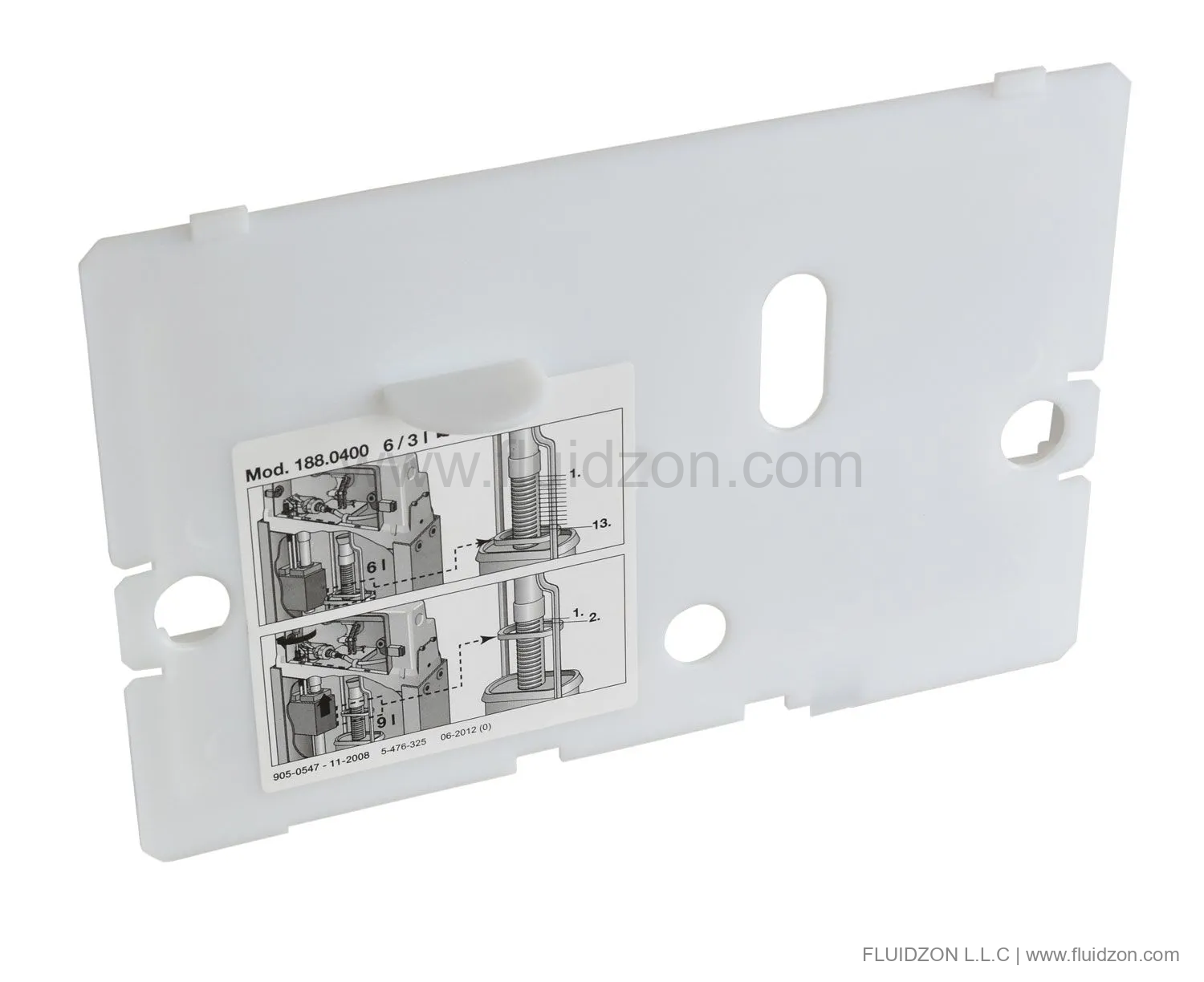

Protection cover, cistern 188
363843
10

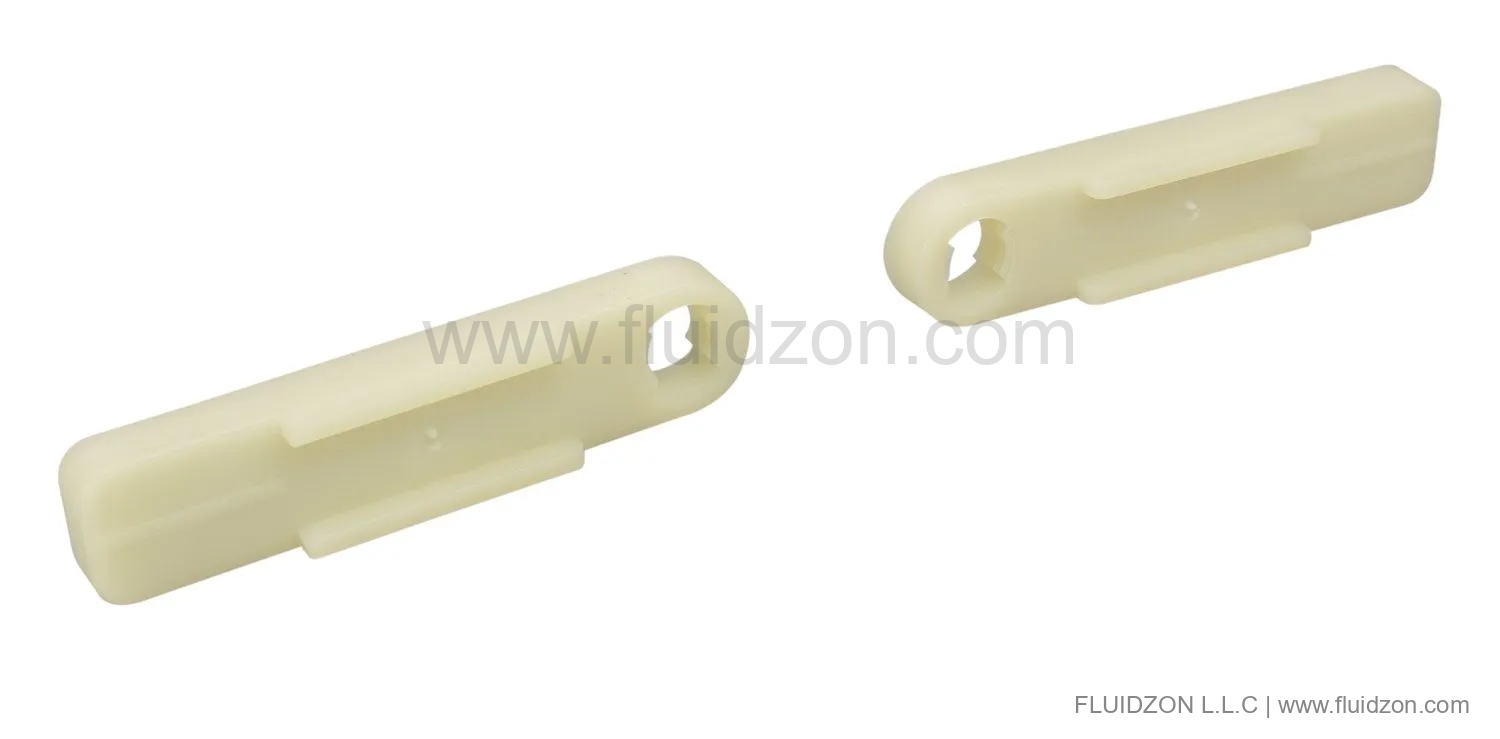

Retaining tabs, cistern 188
367256
11
Fill valve HDV G 3/8 brass
628458
12
Connecting tube without stop valve (from 02/2014)
628459
13
Set fill valve 182, 188, 180, 189
675100

Schwab UP 188

Technical Documentation & Drawings

Browse the document library

Send the model label or product code and our technical team will help you select the installation instructions and dimensional drawing for your system.

Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Fill valve generation boundary

For installations from 1999–February 2014, Schwab’s conversion table maps the old 243292 fill valve to replacement set 675100. The later generation uses 628458; check the model drawing and connection before ordering. A loose valve is not automatically a substitute for the complete conversion set.

Confirm the existing thread, holder, tube and required fittings. Installations near the changeover date need the actual cistern label and mechanism checked.

Schwab conversion-table reference ↗

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.

    Use the drawing and request identification before ordering.
