Schwab UP 190
Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.
Explore the assembly.

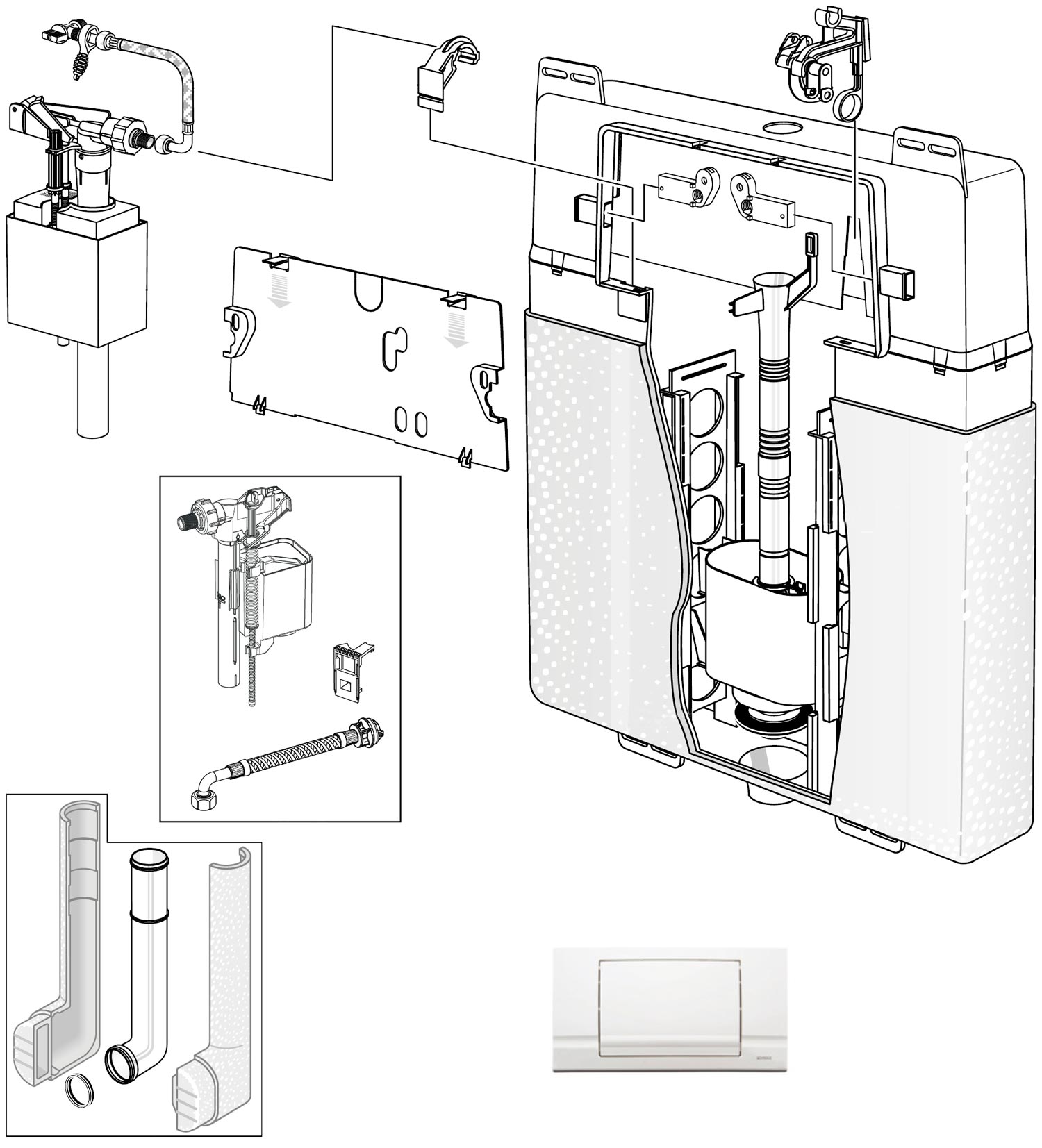

Select a position on the drawing, or find your article below.
Pinch or scroll to zoom · Drag to pan
Drawing positions
Schwab UP 190 / flush plates
Choose the design. Then the finish.
Match the plate mechanism and installation generation before ordering. Historical references do not establish current availability.
2. Finish
227702Enquire about this plate ↗
- Matt chrome
- Plastic
- start-stop
- mechanical
GALA · Matt chrome
- Dimensions
- 345 x 180 x 32 mm (published Length x Width x Height)
- Material
- Plastic
- Operation
- start-stop
- Mechanism
- mechanical
- Actuation
- front
- EAN
- 3838912034625
Generation & required hardware
190.000 since 1997; 190.0400 1999-2003; start-stop.
Existing I5 bearing bracket 234116 with setting lever; A2 cover 239337. Start-stop only in inspected model specification.
Exact plate mechanism must match; no manufacturer plate revision/cutover date found.
Schwab UP 190 / replacement articles
Every part, in view.
10 of 10 components
2
239336
3
239337
4
351517
5
352277
6
363802
7
363814
8
363823
9GR-S113-0250
Component photo unavailableFlush pipe elbow
10
675104
Schwab UP 190
Technical Documentation & Drawings
GALA — Technical drawing
Dimension sheet · PDF · 23 KB
GALA — Technical drawing
Dimension sheet · PDF · 23 KB
Model support
Check the cause. Match the article.
These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.
Water continues into the bowl
Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.
- 239336 — Flush valve with gasket, cisterns 190, 192
Drawing position 2 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
- 351517 — Flange gasket for flush valve
Drawing position 4 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
- 675104 — Fill valve 190, 192
Drawing position 10 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
Slow refill or valve noise
Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.
- 363814 — Connecting tube without stop valve (up to 02/2014)
Drawing position 7 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
- 363823 — Fill valve holder, cisterns 190, 192
Drawing position 8 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
- 675104 — Fill valve 190, 192
Drawing position 10 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
Button loose or not operating
Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.

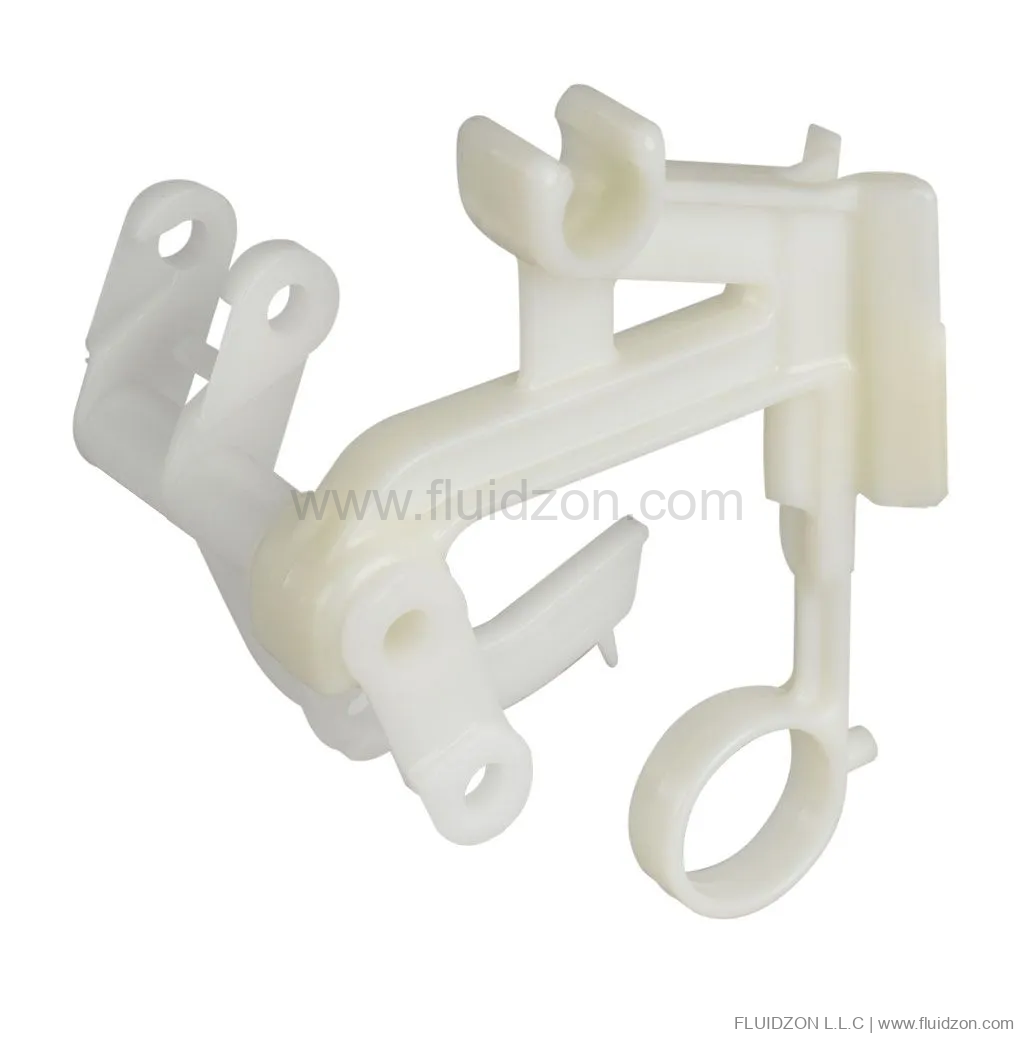

- 234116 — Actuating lever with a bracket set
Drawing position 1 · Listed by Schwab for Schwab UP 190. Confirm the installation generation and connection before ordering.
