Schwab UP 199

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

10 listed components
Explore flush plate designs & finishes →

Pinch or scroll to zoom · Drag to pan

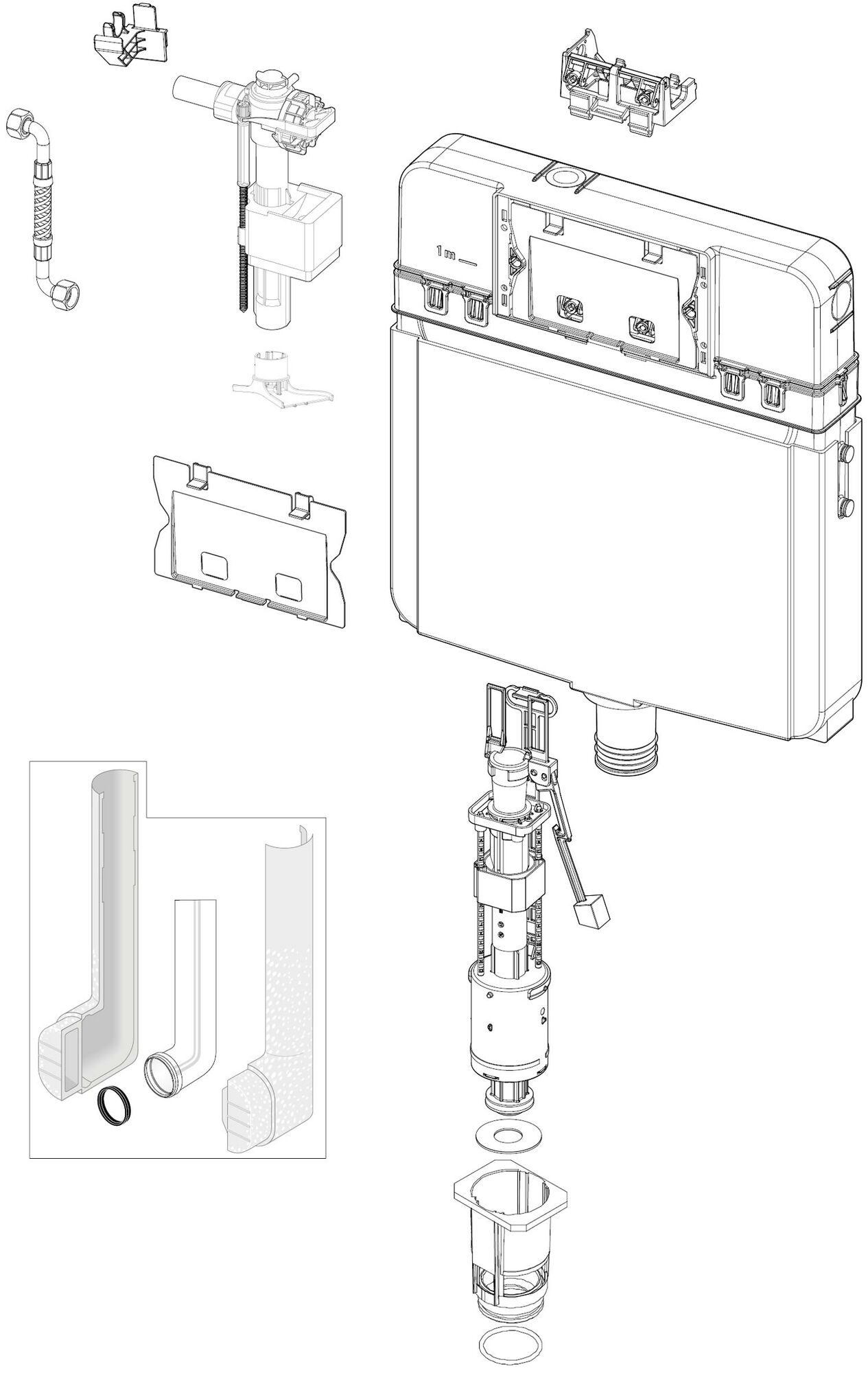

Schwab UP 199 manufacturer exploded parts diagram

Drawing positions

Schwab UP 199 / flush plates

Choose the design. Then the finish.

Match the plate mechanism and installation generation before ordering. Historical references do not establish current availability.

Component photo unavailableALTHEA IR CONTROL KIT, white, P69-0130-0250

Original catalogue photo · limited resolution

2. Finish

P69-0130-0250
  • white
  • high quality plastic
  • dual flush
  • electronic infrared

ALTHEA IR CONTROL KIT · white

Dimensions
247 x 160 x 10.5 mm
Material
high quality plastic
Operation
dual flush
Mechanism
electronic infrared
EAN
8681282657995
Generation & required hardware

Year range not published in inspected compatibility sources; standard 199. Pneumatic conversion is a separate configuration.

Complete ALTHEA IR control kit P69-0130-0250 includes lifting unit and fixing parts; approved power supply ordered separately. Manufacturer confirms 199 series; no installation-year cutoff or standalone interchangeability statement found.

Exact plate mechanism must match; no manufacturer plate revision/cutover date found.

Enquire about this plate ↗
Manufacturer compatibility reference ↗

Schwab UP 199 / replacement articles

Every part, in view.

10 of 10 components

1

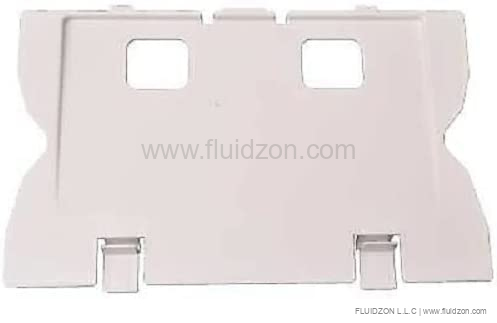

Cover plate
GR0688S
2
Gasket for flush pipe
352277
3
Component photo unavailableFlush pipe elbow
GR-S113-0250
4
Fill valve 747 G 3/8 brass, holder
747E-036-P20
5
Connecting tube
GR0232S
6

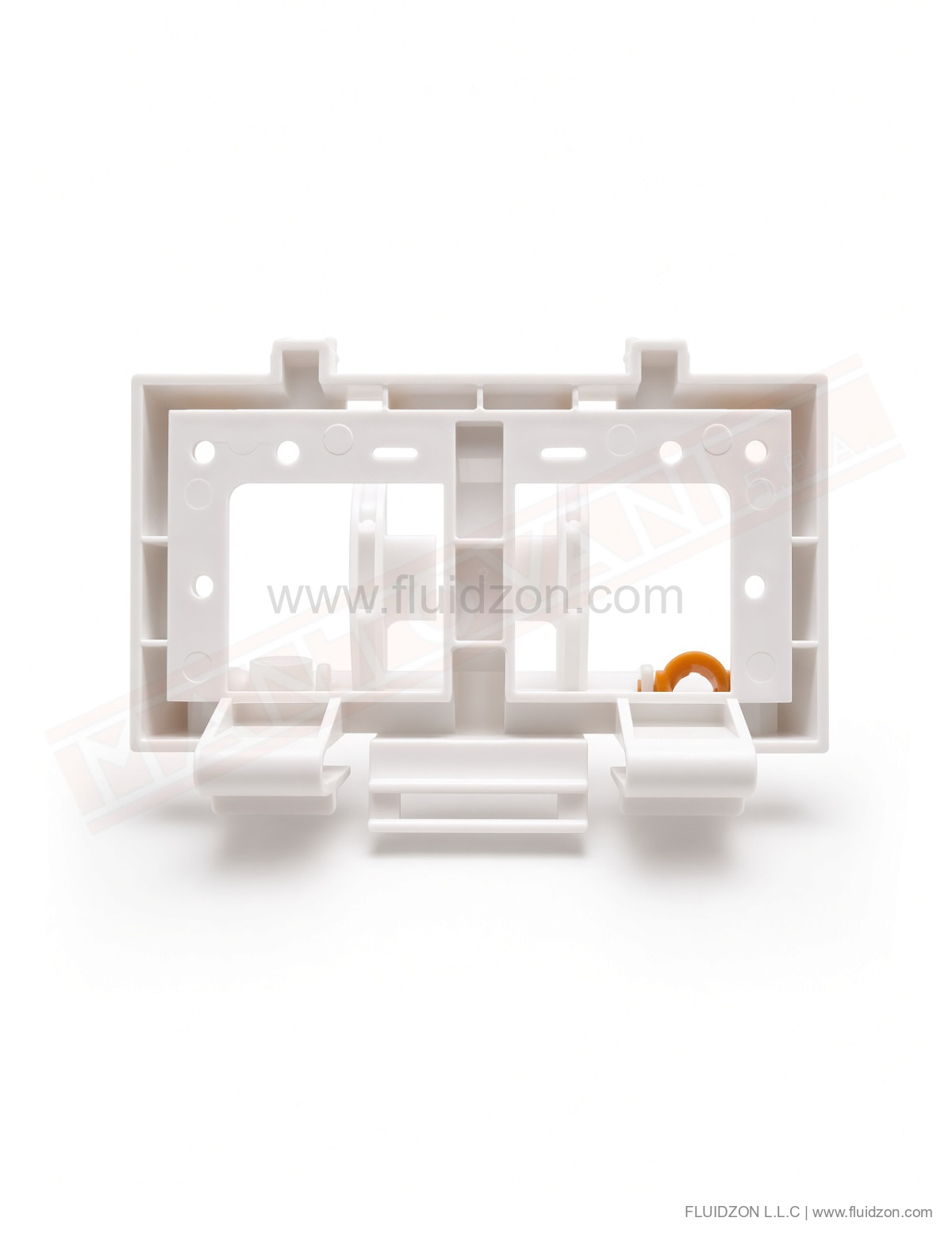

Bridge, cistern 199, 299
GR-S20S
7

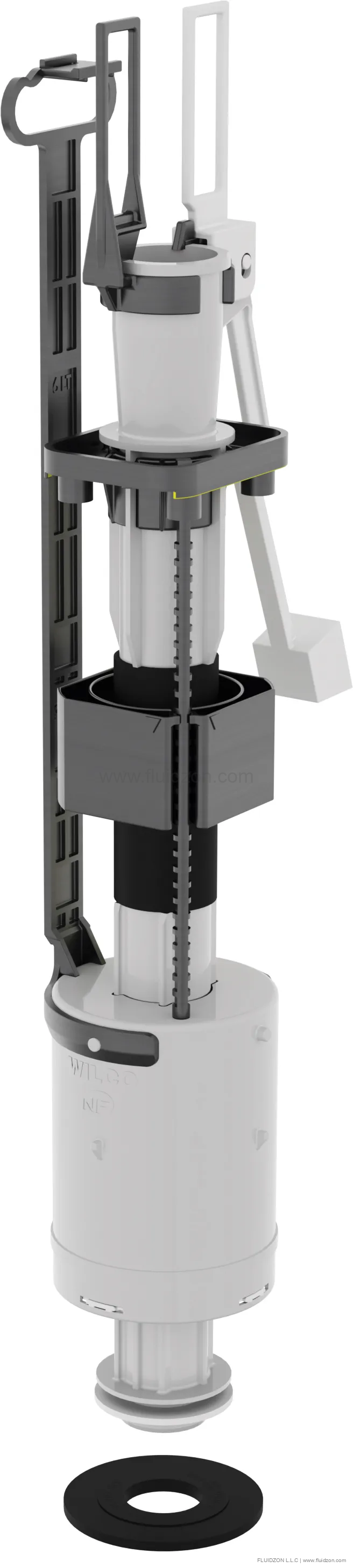

Flush valve
GR-S350-0250
8

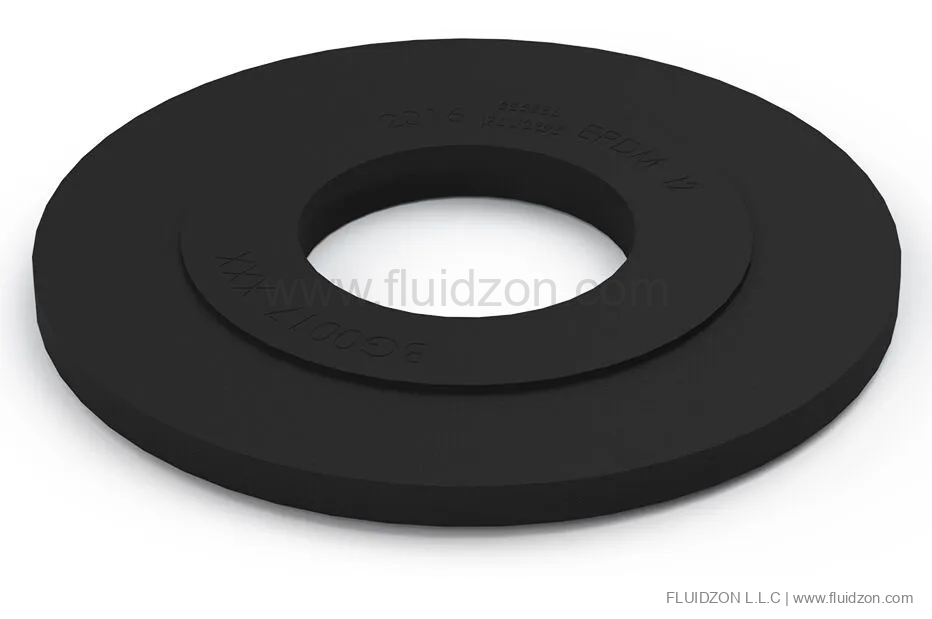

Flush valve rubber gasket 59 x 23,4 x 4,2 mm
GR-S391-0250
9
Component photo unavailableFill valve holder
GR-S182
10

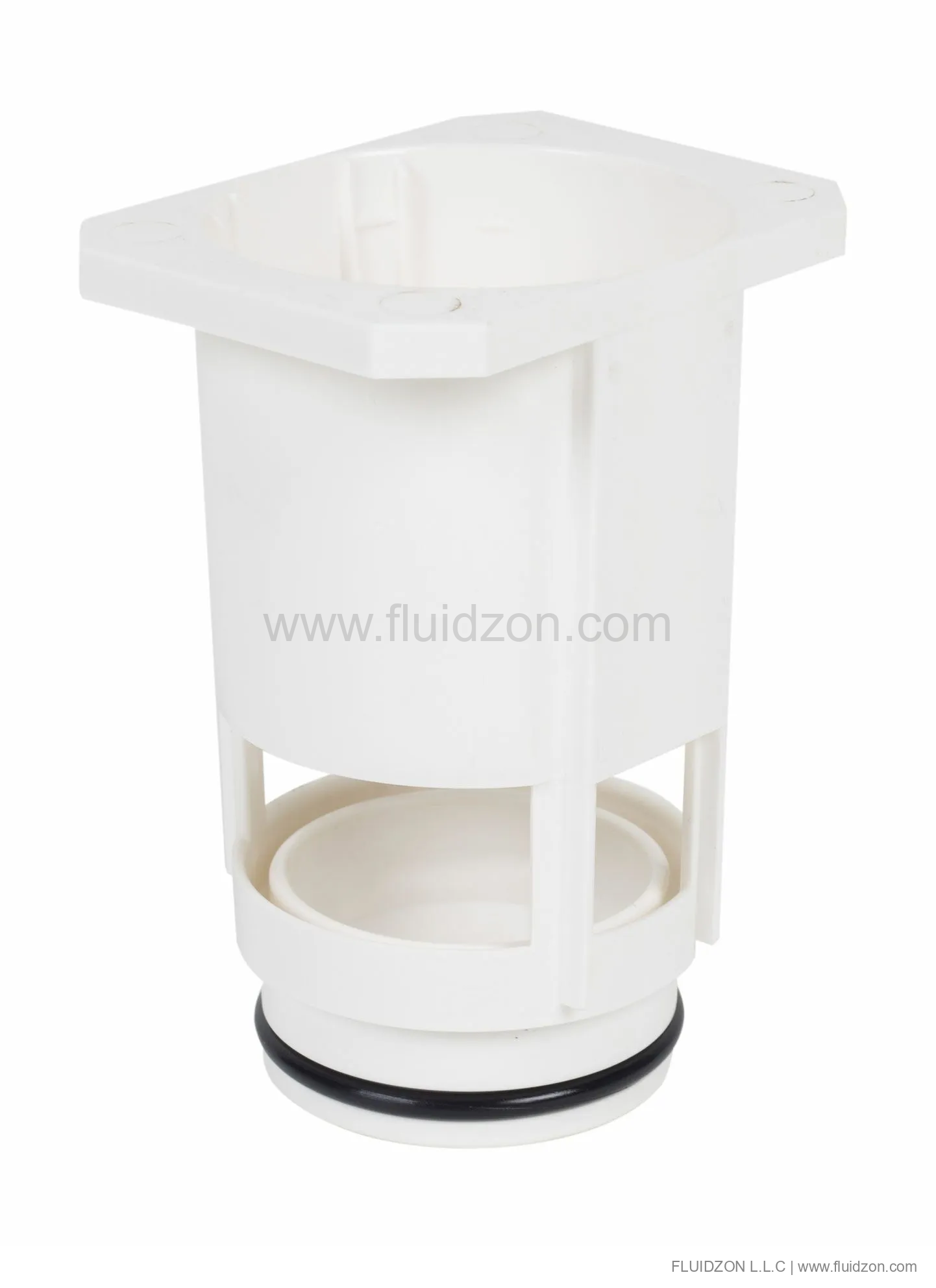

Flush valve holder, cisterns 199, 299
GR-S190

Schwab UP 199

Technical Documentation & Drawings

Browse the document library

Flushing plate VELA, gold — article P47-0140-0250 dimension drawing

Dimension sheet · PDF · 25 KB

DownloadOpen in new tab

Schwab 199 — Cross-Section & Detail Drawing

Dimension sheet · PDF · 119 KB

DownloadOpen in new tab

Schwab 199 — Overall Dimensions & Technical Drawing

Dimension sheet · PDF · 68 KB

DownloadOpen in new tab

Schwab 199 — Rough-In / Installation Dimensions

Dimension sheet · PDF · 50 KB

DownloadOpen in new tab

Schwab 199 — SET masonry assembly dimension sheet

Dimension sheet · PDF · 50 KB

DownloadOpen in new tab
Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Model 199 holder reference

GR-S182 is the holder reference listed for model 199. Its code does not establish compatibility with model 182. The exact supplied kit contents still require confirmation.

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.
