Schwab AP122 Monoblock
Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.
Explore the assembly.

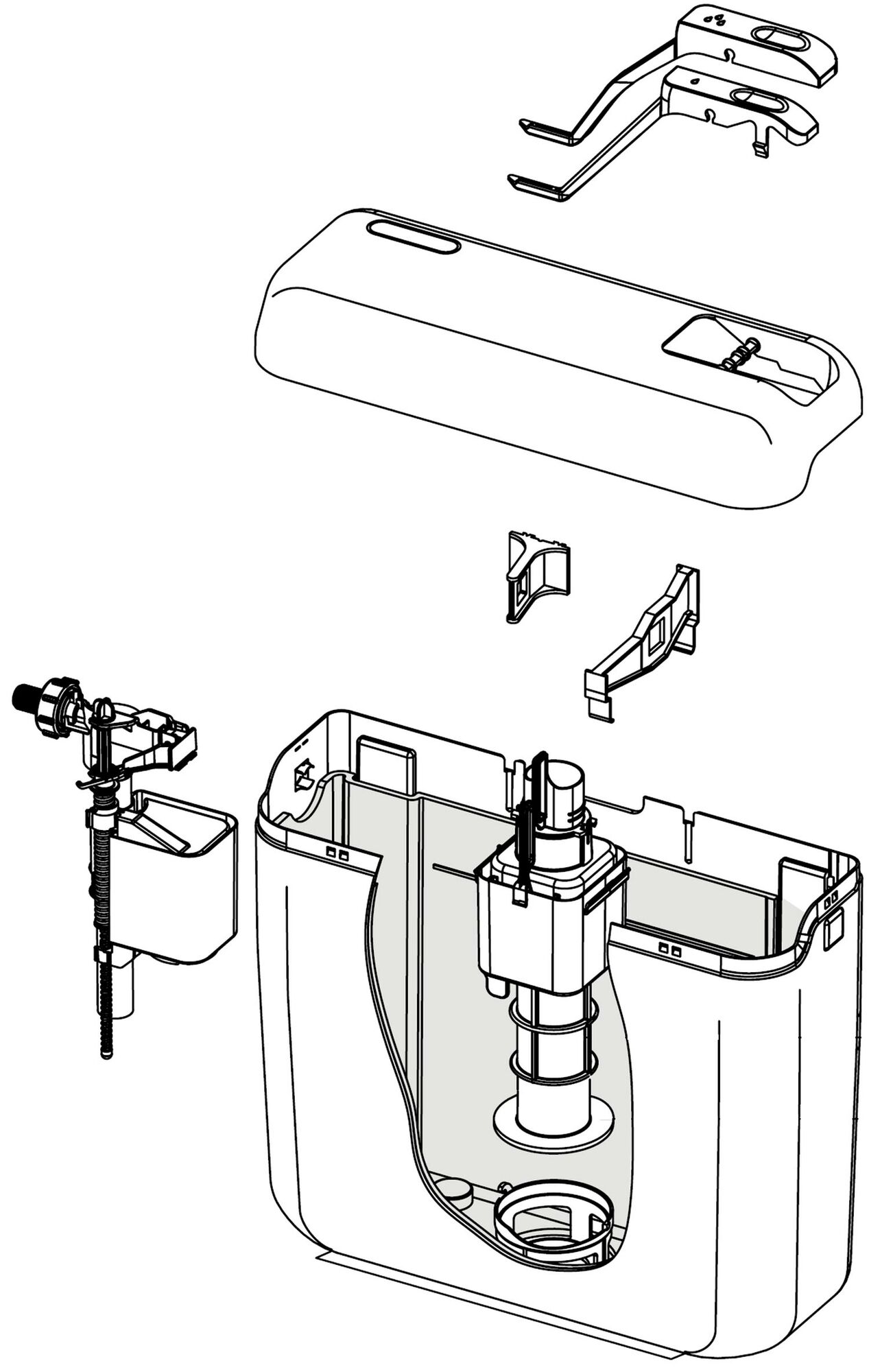

Select a position on the drawing, or find your article below.
Pinch or scroll to zoom · Drag to pan
Drawing positions
Schwab AP122 Monoblock / replacement articles
Every part, in view.
7 of 7 components
2
243276
3
243278
4
243280
5
243282
6
243285
7
628458
Schwab AP122 Monoblock
Technical Documentation & Drawings
Schwab AP122 Monoblock — dimension sheet
Dimension sheet · PDF · 25 KB
Model support
Check the cause. Match the article.
These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.
Water continues into the bowl
Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.
- 243275 — Gasket for flush valve
Drawing position 1 · Listed by Schwab for Schwab AP122 Monoblock. Confirm the installation generation and connection before ordering.
- 243280 — Flush valve with gasket, cisterns AP122, AP122 MONOBLOCK, AP102
Drawing position 4 · Listed by Schwab for Schwab AP122 Monoblock. Confirm the installation generation and connection before ordering.
- 628458 — Fill valve HDV G 3/8 brass
Drawing position 7 · Listed by Schwab for Schwab AP122 Monoblock. Confirm the installation generation and connection before ordering.
Slow refill or valve noise
Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.
- 628458 — Fill valve HDV G 3/8 brass
Drawing position 7 · Listed by Schwab for Schwab AP122 Monoblock. Confirm the installation generation and connection before ordering.
Button loose or not operating
Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.
Use the drawing and request identification before ordering.
Technical support · UAE
The right part starts with the right model.
Have a label, an article code or an old part? Share the details with our technical team.
