Schwab AP230 — up to June 2020

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

16 listed components

Pinch or scroll to zoom · Drag to pan

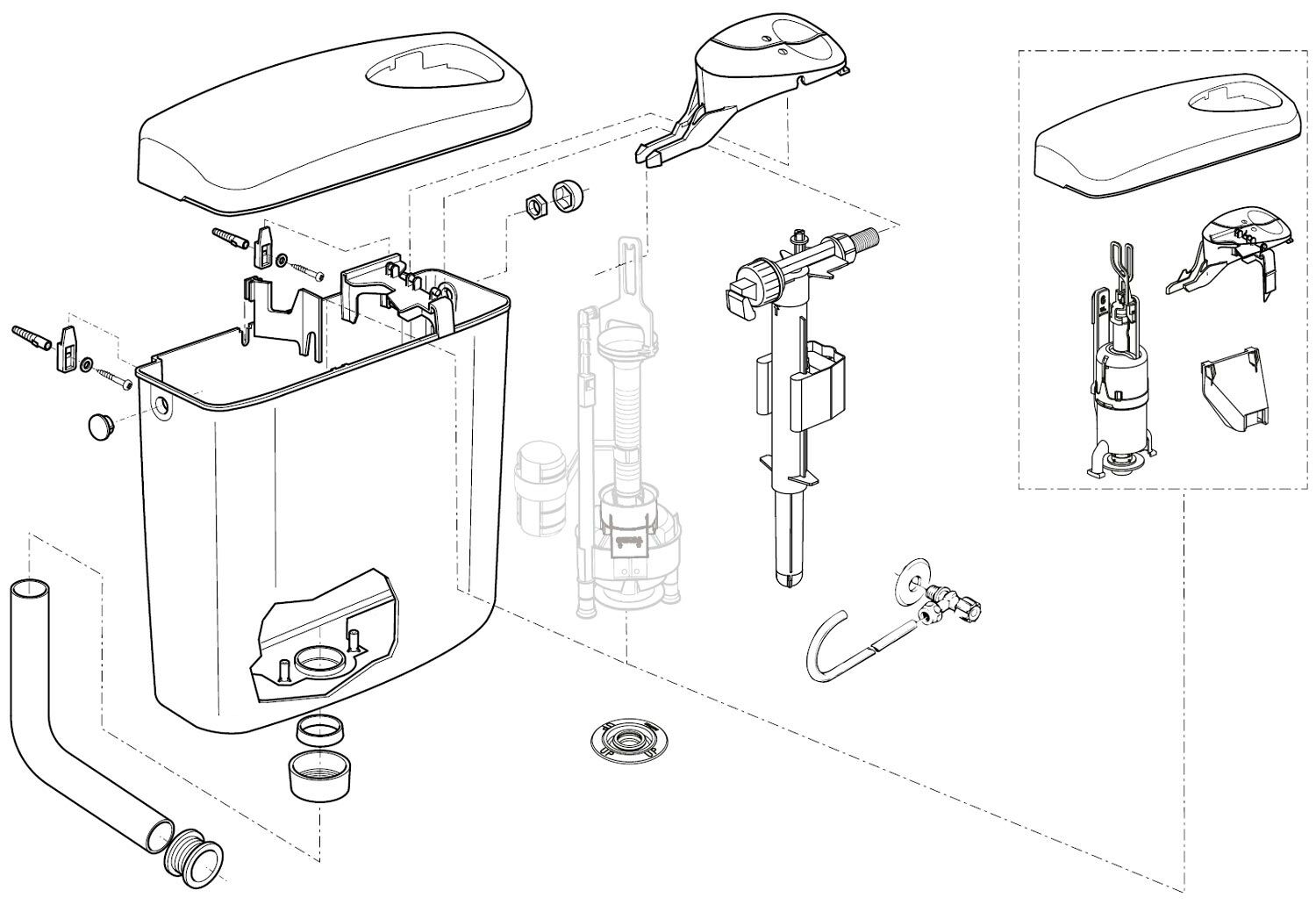

Schwab AP230 — up to June 2020 manufacturer exploded parts diagram

Drawing positions

Schwab AP230 — up to June 2020 / replacement articles

Every part, in view.

16 of 16 components

1

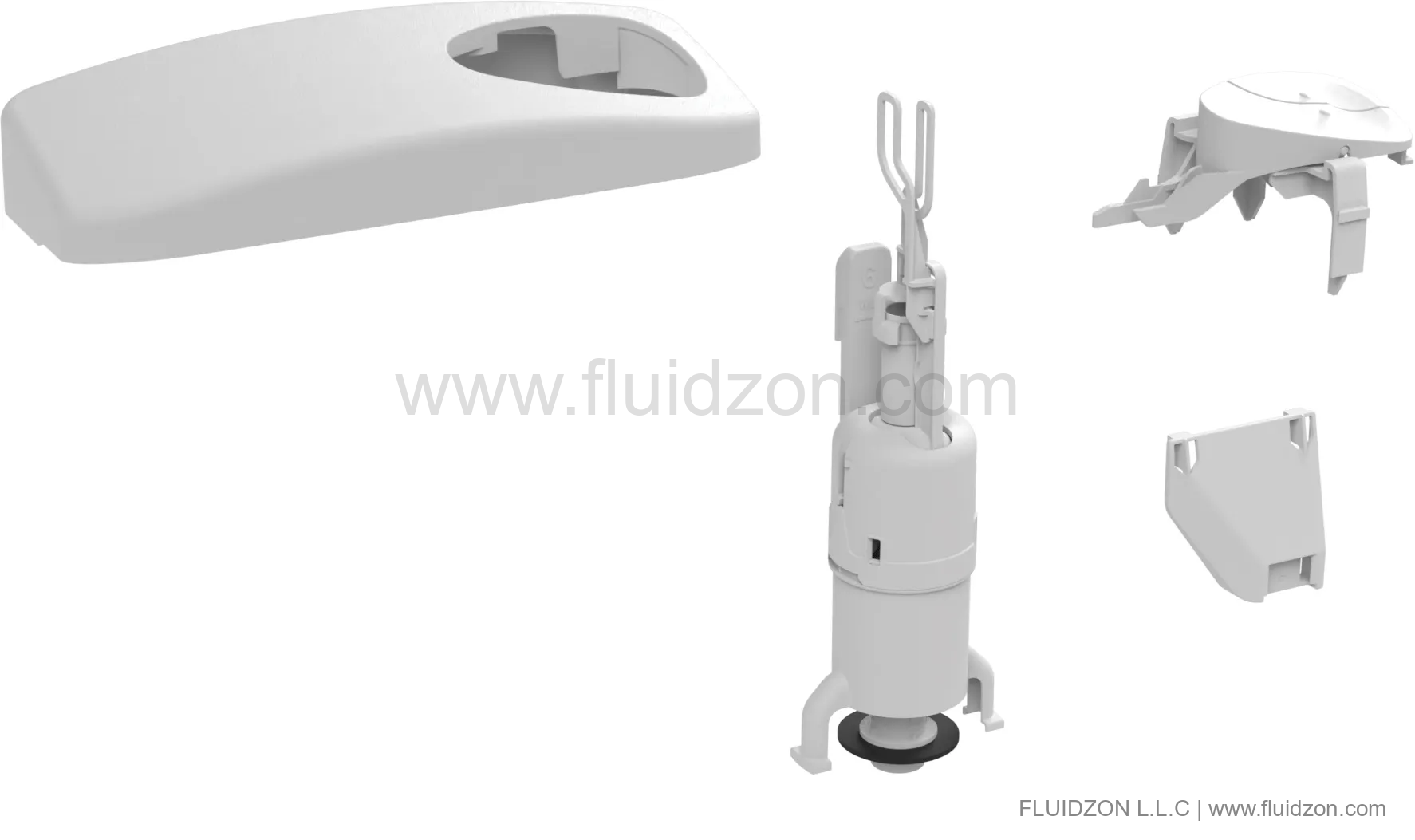

CONVERSION SET, white
8050800101
2
Component photo unavailableBridge / spacer
8050883276FM
3
Fill valve HVK G 3/8 brass shank
8035432795
4
Angle valve G 1/2
1403987112
5
Copper connection pipe
1405987116
6
Cistern cover with a function buttons, white
8050411401
7
Component photo unavailableFunction buttons, white
8050412601
8
Holder (screw and insert) with flush pipe gasket
8050800078
9
Rosette, white
8050882382
10
Flush pipe rosette, white
8050882430
11
Flushing cistern outlet seal
8050882450
12
Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white
8050882480
13
Bridging piece, button
8050883649
14
WC Flush pipe connector seal No. 101
8050985530
15
Rubber gasket for DF 3/6 l
8035390111
16
Flush pipe elbow, 230 x 210 mm, white
8050110101

Schwab AP230 — up to June 2020

Technical Documentation & Drawings

Browse the document library

Send the model label or product code and our technical team will help you select the installation instructions and dimensional drawing for your system.

Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.

  • 8050883276FM — Bridge / spacer

    Drawing position 2 · Listed by Schwab for Schwab AP230 (Jun 2020). Confirm the installation generation and connection before ordering.
